Amsoil is about no compromises. You want your oil clean down to the desirable 2 micron number. We have the best oil filter for this bypass oil filtration. We provide the complete solution; the filters, the Bypass oil Filter kits and all the plumbing and fittings, installation guides and pictures of actual installations. Please call we will get you set up call/txt 860 436 7034.   The diesel tab on the left has links to specific diesel engines. There are some .jpgs of actual installs lower on the diesel pages. There are actual installation .pdf files organized by Amsoil bypass filter type (BMK) here. For the best price please go here.

Detailed engine bypass kit information for: 6.0/6.4 Powerstroke, Cummins, Duramax otherwise please scroll down

Amsoil Bypass filter.  According to ISO 23556 testing, these filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter

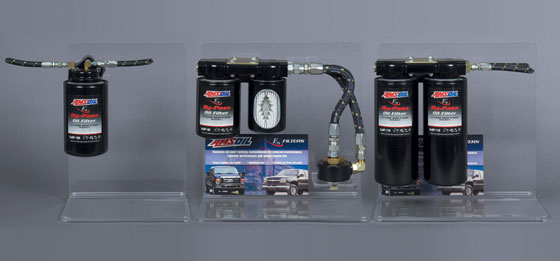

PRODUCT DESCRIPTION : The picture above shows the AmsOil bypass oil filter kit BMK21( left ), AmsOil bypass filter kit BMK23 (center), and the AmsOil bypass filter kit BMK22 (right).

Here are definitions ( jargon) for bypass filter kits.

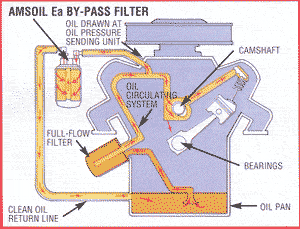

bypass kitThe Amsoil Bypass Filter Kit. Once this kit is installed it is possible to eliminate oil drains. There is a picture of how it works on the right side.  Click the picture to see it better.  (The kit would start with a BMK and then a number). The K means Kit. has some or all of the following parts: A bracket to hold just a bypass filter, or both the bypass filter and the full flow filter, plumbing hardware to collect and return the oil into the engine. It

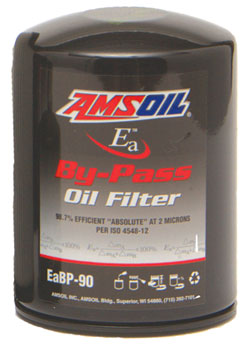

2 micron bypass filterThe Bypass Filter(EABP 90, EaBP100, EaBP110, EaBP120 ).You choose the size by your sump capacity.  If you want 2 micron clean oil this is the best filter.  The undisputed industry leader. The letters EA mean each ( one ). The letters BP mean bypass filter, this refers to the actual spin on filter. The numbers after BP refer to the size 120 is the tallest 90 is the shortest. These you select by how much room you have in the mounting area of your vehicle. All the BP filters have the same width and thread. Larger means less oil changes cleans to a 2 microns Sizes and capacities of the Bypass Oil Filter are lower on this page.Here is the table showing their size and capacity.

BK Fittings are fittings to help give the installation a nice finishing touch.  They are usually specific to an application

BP Fittings. These parts are generic plumbing parts required to move attach hoses and help route the oil hoses around the engine compartment.

Oil Analysis:Engine oil analysis is used to let you know what is going on inside your engine. It gives you a list of all the metals and byproducts in your oil. This lets you actually see how well your filters are working and what kind of shape your oil is in. Engine oil analysis helps increase your comfort level also. Using oil analysis with the Amsoil bypass oil filter and and an oil with a high base number ( HDD 5w30, AME 15w40, ACD 10w30 sae30 ) you can all but eliminat oil drains. We have testimonials showing diesels in perfect shape after 400,000 mi without an oil change, just filter changes. Please contact us for a copy of the study call/txt 860 436 7034 santana.

Soot Removal: AMSOIL has designed the bypass filter kit around a new high-efficiency bypass filter element that is also a soot removal device. AMSOIL Ea ByPass Filter element uses a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. According to ISO 23556 testing, these bypass filter element removes 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP bypass Filter element is used in conjunction with a standard Eao or Donaldson Endurance oil filter.

Save money: You save money because will reduce wear and reduce oil changes, You increase wear protection so your rig lasts longer, you use less fuel. Since your maintenace is done you can focus on your business so you not only save money that can make money.

Amsoil low cost bypass filter will reduce wear and reduce oil changes When used in conjunction with AMSOIL motor oil and an EaO or Donaldson Endurance filter, EaBP Bypass oil Filter should be changed less, basically every other full flow filter change up to 60,000 miles. When used with other brands of motor oil or full flow filters, the EaBP filter should be changed every other full flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals EaBP filter: The Ea By-Pass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s full-flow oil filter, the AMSOIL Ea By-Pass Filter operates by filtering oil on a “partial-flow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can’t remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil. This is how the Bypass Oil filter kit reduces wear.

Here is a list of the parts contained in the BMK21 bypass filter kit. There are some optional items listed also:

1. Oil Pressure Sending Unit (existing)
2. Filter Mount Assembly, Spin-On 1 BK-303
 3. Fitting Adapter 4 BP-208
4. Fender Washer 3 BP-205
5. Flat Washer 3 BP-120
6.  Self Locking Nut 3 BP-121
7.  Hex Head Bolt 3 BP-122
 8.  Hose 88 BP-251
9. Hose Fitting 4 BP-261
10. Street “T”  1 BP-33
11. Straight “T”  1 BP-34
12. 90° Street Elbow, 4 BP-52
13. Bushing  1 BP-38
14. Nipple  1 BP-39
15. Self Tapping Hollow Bolt 1 BP-40
16. Sealing Gasket 1 BP-41 Plastic Tie 2 BP-46 Thread Sealant 1 BP-198 Instruction Sheet 1 BP-83
Optional parts available from AMSOIL INC.
Filter Cap for 6.0L Ford BK-1101
Oil Fill Cap for 6.0L Ford BK-1102
 BP-242 Oil Sampling Kit
BP-67 Oil Return Swivel Fitting
BP-89 Deluxe Oil Sampling Valve 1⁄49 NPT G-1570
By-pass filter element (EaBP90, EaBP100, or EaBP110, as space dictates) (all sold separately)

INSTALLATION PDF here
More detailed information can be found here
Amsoil bypass filter BMK18 installation instructions here
Amsoil bypass filter BMK21 installation instructions here
Amsoil bypass filter BMK22 installation instructions here
Amsoil bypass filter BMK23 installation instructions here
Amsoil bypass filter BMK25 installation instructions here
Amsoil bypass filter BMK26installation instructions here
Amsoil bypass filter BMK27 installation instructions here
Amsoil bypass filter BMK30 installation instructions here
Type of unit Stock number Size Additional oil needed Crankcase capacity Application
Single Spin on element EaBP 90 Diam. = 4.3 in.
Height = 5.8 in.
With Mnt. = 8 in.
1 qt. up to 9 qt. Pleasure Vehicles, Light Trucks and Smaller Commercial Applications
Single Spin on element  EaBP100 Diam. = 4.3 in.
Height = 7.3 in.
With Mnt. = 10 in.
1.5 qt.
up to 15 qt. Pleasure Vehicles, Light Trucks and Smaller Commercial Applications
  EaBP110 Diam. = 4.3 in.
Height = 10.4 in.
With Mnt. = 12 in.
2 qt. up to 21 qt. Pleasure Vehicles, Light Trucks and Smaller Commercial Applications
Filtration kit Application Suggested Filter Elements Optional Components Description
BMK21 Auto/Light Truck and
Marine (Dodge w/Cummins 2004 and later)
EaBP90, 100 and 110 BP44, 45, 67 and 89 Add-on by-pass filter kit. Includes mount, hose and fittings. Order filter separately.
BMK23 Auto/Light Truck
Marine
EaBP90, 100 and 110

EaO10, 34, 42, 96, 15* or 26*
BK21, 22 and 43 Relocate full-flow with by-pass filter. Includes mount, hose and fittings. Order filters separately.
BMK14 Auto/Light Truck (2) EaBP90 or (2) EaBP100 or (2) EaBP110 BK21 and 22 Dual mount only, does not include filters, hose or fittings. Crankcase capacity / suggested filters - 15 to 18 qt. = (2) EaBP90, 18 to 30 qt .= (2) EaBP100, 30 to 42 qt. = (2) EaBP110
BMK22 Large truck, stationary engines, compressors, forestry, agriculture, marine, mining EaBP100 and EaO26 All hoses and fittings Dual mount only, does not include filters, hose or fittings. Crankcase capacity / suggested filters - 15 to 18 qt. = (2) EaBP90, 18 to 30 qt .= (2) EaBP100, 30 to 42 qt. = (2) EaBP110
BMK25 Light truck primarily
Dodge with Cummins engines
EaBP100 and EaO26 BK21, 22 and 23 Relocate full-flow with Cummins engines bypass for 5.9 and 6.7 liter . Includes mount, filters, hose and fittings.
BMK26 Light truck primarily
Ford with International engines
EaBP100 and EaO26 BK21, 22 and 23 International engine Powerstroke Relocate full-flow with by-pass for 6.9, 7.3 and 7.5 liter . Includes mount, filters, hose and fittings.
BMK27 Light truck primarily
GMC with Isuzu engines
EaBP100 and EaO26 BK21, 22 and 23 Duramax Isuzu diesel engine.Relocate full-flow with by-pass for 6.6 liter  Includes mount, filters, hose and fittings.
BMK30 Heavy Duty Class 6,7,8 EaBP120 (2) BK30ea sampling kit
Bp250 hose

Industrial bypass oil filter installations
2005 Navistar 9400 Semi Tractor - ISX 435 cummins
2002 Mitsubishi Fuso 4 Cylinder Turbo Diesel
Skytrak 10042 - Cummins 4 Cylinder Turbo Diesel
Case IH MX 210 8.3L Cummins Diesel
OTR Heavy Duty Applications
2010 IH Trans Star 8600 SBA 6 X 4 Cummins ISX BMK 30 bypass filter
2009 Freightliner Columbia 12.7L Detroit Diesel BMK30 bypass filter
Pickup Truck , Light Diesel and SUV Bypass filter  applications
2010 Toyota Tacoma BMK23
2009 Ford F150 BMK23
2008 Ford Expedition BMK23
2008 Ford F350 Super Duty 6.4L Power Stroke Diesel BMK30
2008 Ford F250 Super Duty 6.4L Power Stroke Diesel BMK23
2008 GMC 2500 HD Duramax BMK27

More detailed information can be found here
